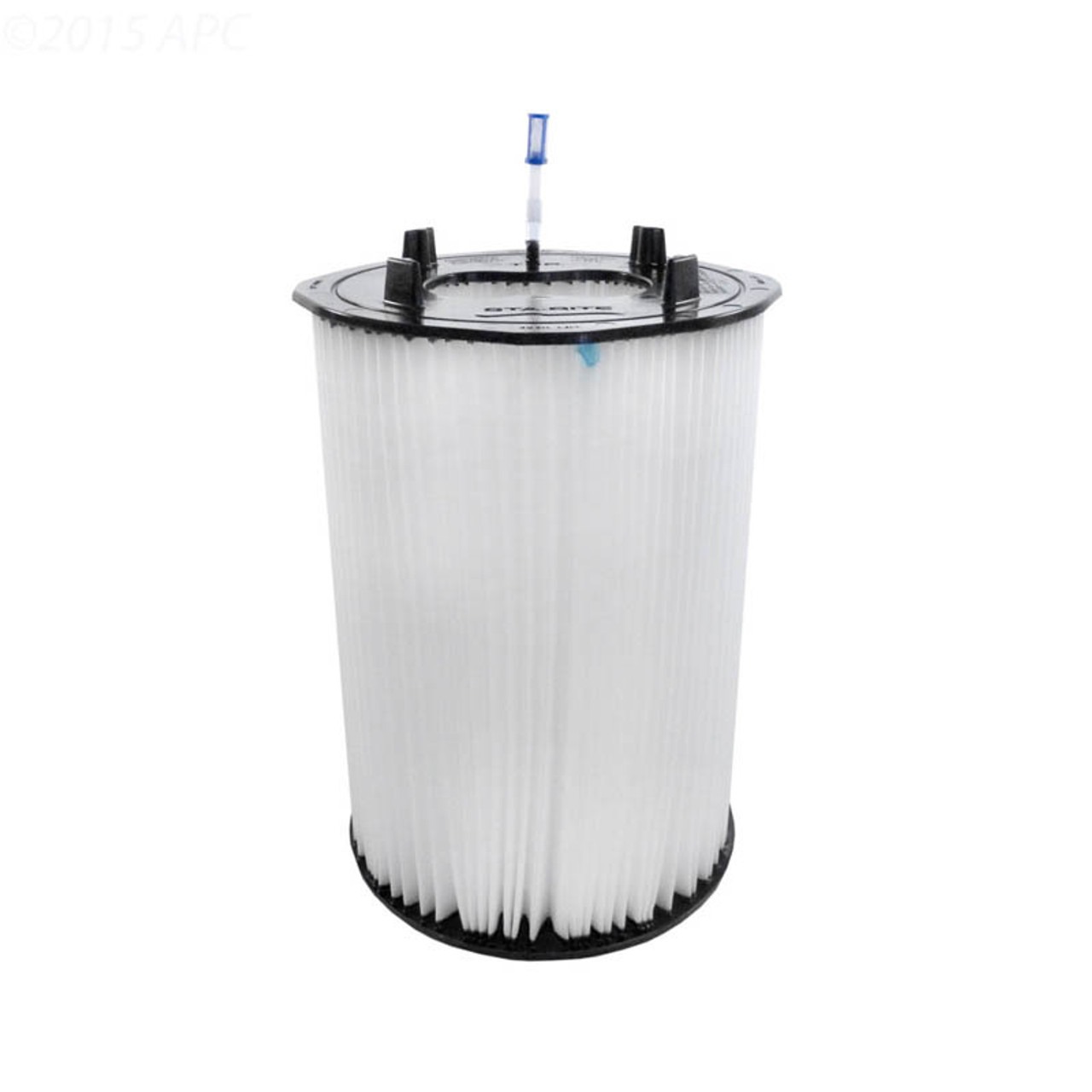

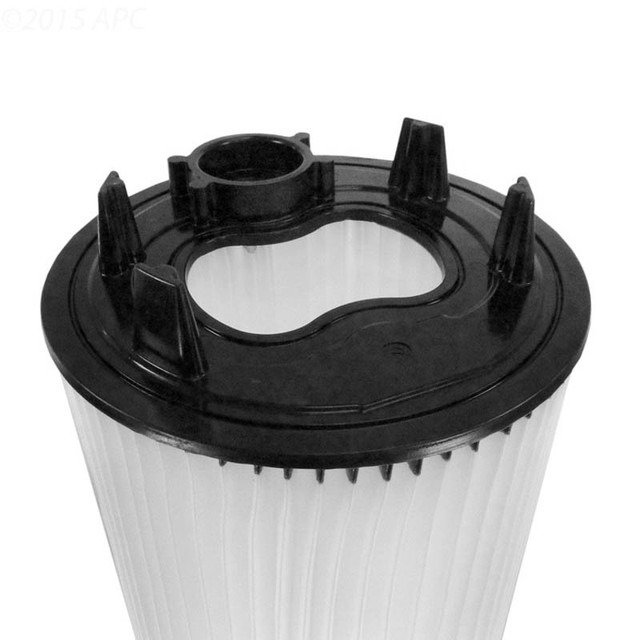

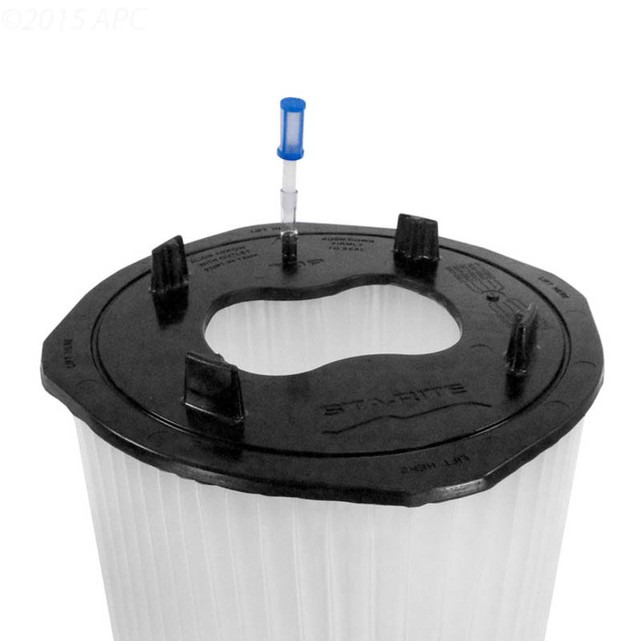

Sta-Rite 36 Sq/Ft Modular D.E. Filter

The Sta-Rite PLDE36 System:2 Modular D.E. Filter delivers exceptional diatomaceous earth (D.E.) filtration in a compact, user-friendly design. Ideal for in-ground pools and spas, this filter combines high performance with simplified maintenance, ensuring crystal-clear water with minimal effort.​

Key Features:

• 36 Sq. Ft. Filtration Area: Efficiently captures particles as small as 5 microns, providing superior water clarity.​

• Innovative Modular Design: Features a single, replaceable grid element that simplifies cleaning and servicing compared to traditional multi-grid D.E. filters.​

• Balanced Flow Technology: Ensures even water distribution across the filter media, maximizing dirt-holding capacity and extending time between cleanings.​

• Durable Construction: Built with rugged ABS thermoplastic housing for long-lasting performance and resistance to corrosion.​

• Posi-Ring® Closure: Provides quick and secure access to the filter module, facilitating easy maintenance.​

• Versatile Installation: Can be plumbed with or without a backwash valve; includes 2″ union valves for installations opting out of a backwash valve.​

• Compact Footprint: The small diameter design makes it suitable for both new installations and retrofits where space is limited.​

Specifications:

• Model: PLDE36​

• Filtration Area: 36 sq. ft.​

• Flow Rate: Up to 54 GPM​

• D.E. Required: Approximately 5.4 lbs. (sold separately)​

• Maximum Operating Pressure: 50 PSI​

• Maximum Water Temperature: 104°F (40°C)​

• Port Size: 2″ NPT​

• Dimensions: Approximately 36.5″ H x 21″ W​

• Weight: Approximately 45 lbs.​

The Sta-Rite PLDE36 System:2 Modular D.E. Filter is designed for pool owners seeking efficient filtration with minimal maintenance. Its advanced features and durable construction make it a reliable choice for maintaining a clean and healthy swimming environment.​
